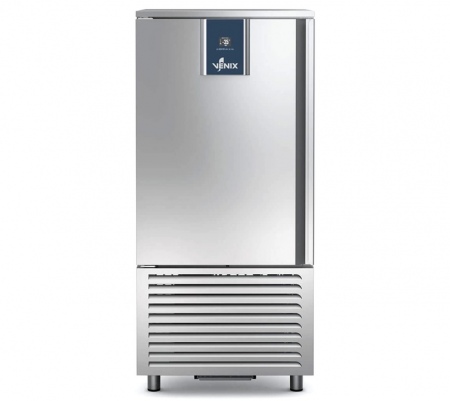

Venix ASP15 Blast Chiller & Shock Freezer, 15GN
- Load Capacity: 15 trays GN 1/1, 600x400, 660x460mm
- Space between trays: 70mm
- Capacity per cycle:
- Chill > 60kg +90o ~ +3oC
- Freeze > 40kg +90o ~ -18oC
- Ambient operating temperature: 43oC
- Cooling capacity: 4813 W
- 304 stainless steel interior and exterior
- Removable tray holders
- Touch control on top of the unit with user-friendly graphic display
- Cycle controlled by core probe or timer
- Pre-set recipes
- Equipped with HACCP function
- Fish sanitation cycle
- Larger evaporator fan improves airflow and heat extraction
- Reversible door
- Top of the market cooling and energy saving performance
- Anti-condensation door frame
- Hot gas defrost system
- Self-closing door
- Easy to clean magnetic sealing gasket, replaceable without tools
- Insulation with high density HDPI polyurethane 70mm thickness
- Composite fan blade with low temperature bearing
- Condenser protection easily removable for cleaning with any tools.
- Power: 400 volt 3phase, 3.5kw
- Dimensions: 870 x 870 x 1905mm h
- Weight: 225kg
